| 性能参数表 |
|
产品名称：性能参数表
|

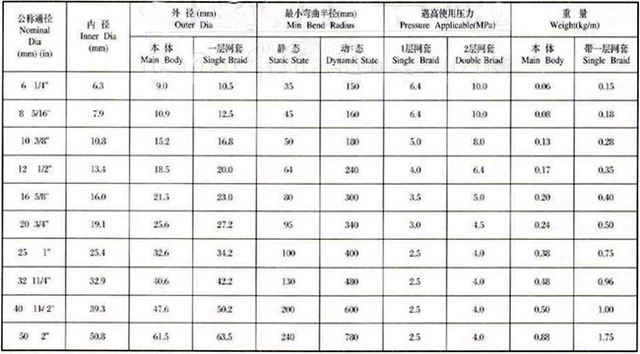

螺旋波纹软管性能参数表 |
|
|
|
|
| |
|
环形波纹软管性能参数表 |
|
|
|
公称通径
|
内径
|
外径
|
最小弯曲半径
|
最高使用压力
|
重量
|
|
本体 |
一层网套 |
静态 |
动态 |
1层网套 |
2层网套 |
本体 |
带一层网套 |
|
14 1/2″ |
14 |
20 |
22 |
62 |
120 |
7.5 |
12.5 |
0.21 |
0.40 |
|
16 5/6 ″ |
16 |
23 |
25 |
80 |
150 |
6.4 |
10.0 |
0.26 |
0.50 |
|
20 3/4″ |
20 |
28 |
30 |
100 |
180 |
5.0 |
8.0 |
0.35 |
0.60 |
|
25 1″ |
25 |
35 |
37 |
120 |
280 |
4.0 |
7.5 |
0.47 |
0.85 |
|
32 11/4″ |
32 |
43 |
45 |
140 |
340 |
3.5 |
6.4 |
0.51 |
0.96 |
|
40 11/2″ |
40 |
51 |
53 |
180 |
450 |
3.0 |
5.6 |
0.71 |
1.10 |
|
50 2″ |
50 |
62 |
64 |
220 |
550 |
2.5 |
4.0 |
0.85 |
1.75 |
|
65 21/2″ |
65 |
79 |
82 |
280 |
650 |
2.0 |
4.0 |
1.14 |
2.70 |
|
80 3″ |
80 |
97 |
100 |
350 |
800 |
2.0 |
3.2 |
1.62 |
3.12 |
|
100 4″ |
100 |
122 |
125 |
400 |
1000 |
1.6 |
2.5 |
2.00 |
3.70 |
|
125 5″ |
125 |
151 |
155 |
500 |
1200 |
1.5 |
2.5 |
2.80 |
5.0 |
|
150 6″ |
150 |
180 |
184 |
600 |
1500 |
1.5 |
2.5 |
3.80 |
6.6 |
|
175 7″ |
175 |
210 |
215 |
700 |
1750 |
1.2 |
2.0 |
5.80 |
9.7 |
|
200 8″ |
200 |
240 |
245 |
800 |
2000 |
1.2 |
2.0 |
6.7 |
12 |
|
250 10″ |
250 |
298 |
303 |
1000 |
2200 |
1.0 |
1.6 |
10.60 |
18.1 |
|
300 12″ |
300 |
360 |
365 |
1200 |
3000 |
1.0 |
1.6 |
17.10 |
31.4 |
|
350 14″ |
350 |
410 |
415 |
1400 |
3500 |
0.8 |
1.6 |
20.00 |
36.3 |
|
400 16″ |
400 |
460 |
465 |
1600 |
3500 |
0.8 |
1.2 |
22.80 |
41.1 | |
| |
|
|
|
|
| |
|
| |
|
|
|
